Style R and Style S Basket Strainers

SaniClean Strainers are a reliable source for those who are seeking premium-quality basket strainers at reasonable prices. With that in mind, here is a closer look at the specifics of our R and S style basket strainers and a detailed explanation of how.

High-Quality Basket Strainers

At SaniClean Strainers, we offer Style R and Style S basket strainers. Each of these strainers can be installed in a vertical or horizontal pipeline and can be configured for duplex piping. There is also the option of perforated basket design (flat bottom basket), wire mesh linear design, or wedge wire strainer baskets. Any type of basket strainer you get at SaniClean Stainers will have the following features:

  • Interchangeability – No matter what type of strainer basket is being used, the perforated or wedge wire are interchangeable and made to fit both.
  • Safety – One major feature of these premium quality basket strainers is that they all come with an optional top cover port. They are designed to accommodate a pressure relief valve or monitoring gauge.
  • Continuity – Another major benefit is that the strainer baskets can be removed, cleaned, and/or replaced without breaking a piping connection. The changeover process is also fast and easy.
  • Flexibility – SaniClean basket strainers are highly flexible and can be piped in simplex or duplex.

These sanitary basket strainers feature SAE 316L stainless steel, exotic alloy construction, and an O-ring that helps to make them more secure by sealing between the strainer basket and the strainer housing. Another notable feature is that they have capacity options from .8 square feet to 3.8 square feet.

The design of Style R and Style S strainer baskets are very different from each other and offer features such as:

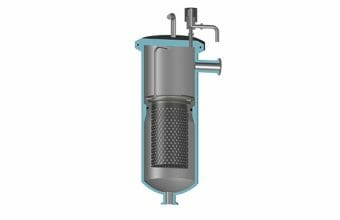

Style R

basket strainers, inline basket strainer, basket strainer manufacturers, basket filters strainers, bag filter basket strainer

  • Side inlet
  • Bottom outlet
  • Ideal for horizontal and vertical pipeline
  • R450 short, medium, and long
  • R863 short and long

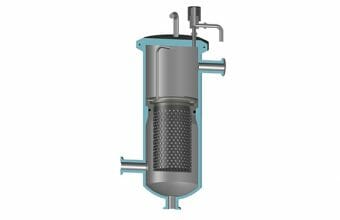

Style S

basket strainers, inline basket strainer, basket strainer manufacturers, basket filters strainers, bag filter basket strainer

  • Side inlet
  • Side outlet
  • Bottom drain
  • Ideal for duplex piping
  • S450 short and long
  • S863 short, medium, and long

Basket Options

SaniClean Strainers also offers multiple strainer basket options to fit the Style R and Style S strainer designs, such as:

  • Perforated baskets
  • Jacketed construction
  • Flat bottom basket (50 PSI pressure differential)
  • Bi-Directional flow
  • Wire mesh liner baskets
  • Truncated bottom basket (125 PSI pressure differential)
  • Wedge wire strainer baskets
  • Filter bags

Key Takeaways:

  • SaniClean Strainers offers Style R and Style S basket strainers.
  • The basket strainers are known for being interchangeable, safe, flexible, and they promote continuity.
  • SaniClean Strainers offer options such as perforation, jacketed construction, bi-directional flow, and much more.

Overall, we offer a wide two different options in terms of basket strainers, which also comes with various customizable features. The epitome of basket strainer manufacturers, we go above and beyond to ensure that our customer’s needs are met by creating high-quality products with various options that can ensure they are a perfect fit for your needs. If you are looking to purchase basket filters strainers of any kind, please contact SaniClean Strainers to discuss how we can better serve you.
