Wire Mesh OverScreens

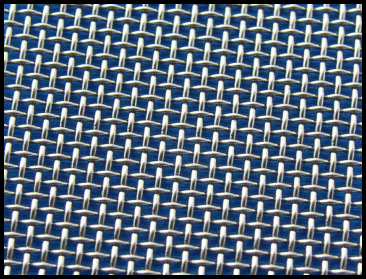

Wire Mesh OverScreens are widely used for ‘mid-range’ straining/filtering applications in food, beverage, and many pharmaceutical applications. They provide an economical, yet durable solution for straining and/or filtering from 1905 microns (10 mesh) down to 74 microns (200 mesh).

Trust your Wire Mesh OverScreens to the experts! Newark Wire Cloth has been in business since 1911. Wire mesh is our business. SaniClean’s Wire Mesh OverScreens are of top quality. The wire mesh is manufactured to industry standard specifications (ASTM E2016).

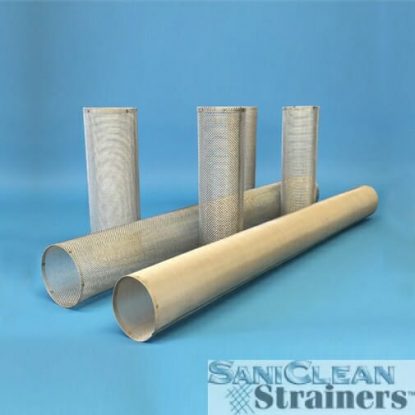

You can expect the Wire Mesh OverScreen itself to be fabricated correctly; tack welded and continuously welded using a welding mandrel ensuring a consistent ‘slip fit’ diameter over the perforated core (Back-Up Tube). The OverScreens are individually packaged. Each package is labeled with the part number and the mesh size. OverScreens are always in stock, whether you’re looking for a single OverScreen or several, we can ship immediately.

SKS OverScreens

SKS OverScreens are not Wire Mesh OverScreens. Our trademarked term ‘SKS OverScreen’, means Sanitary Kleen Screen.

SKS OverScreens have no wire intersections, like wire mesh does. No place for product entrapment between the wires at their point of intersection, less chance of product contamination. The SKS OverScreens are available in similar opening sizes and open area percentages as the Wire Mesh OverScreens, but again, no wire intersections.

The SKS material is produced by piercing stainless steel sheet in a repetitive pattern, producing a product that at first glance looks like wire mesh, but again, it’s not. It mimics ‘expanded metal’, except with much smaller holes. Our SKS OverScreens are available in mesh equivalent openings from a 12 mesh down to a 100 mesh. All material 316L SS.

Same as our Wire Mesh OverScreens, the SKS OverScreens are fabricated correctly; tack welded and continuously welded using a welding mandrel ensuring a consistent ‘slip fit’ diameter over the perforated core (Back-Up Tube). The SKS OverScreens are individually packaged. Each package is labeled with the part number and the SKS specification size.
