Side Inlet Strainers

SaniClean Side Inlet Sanitary Strainers, available from stock, provide efficient cost effective filtration. Crevice free and polished to 3A standards SaniClean Strainers offer maximum flexibility accepting Wire Mesh and SKS Overscreens as well as Wedge Wire and disposable Filter Socks.

SaniClean-SideInlet-RightImage

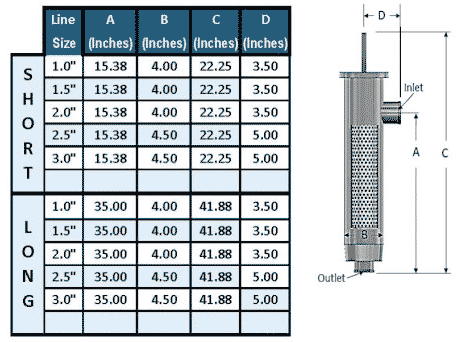

Item No Guide

316L SS – 3A Certified!

  • Capacities: SHORT and LONG
  • Line Sizes: 1.0”, 1.5”, 2.0”, 2.5”, and 3.0”
  • Connections: Clamped (standard), I-Line, Bevel Seat, Butt Weld
  • Surface Finish: 25 Ra Internal, 35 Ra Outside
  • Duplex Arrangements Available

Available with any one of (5) media options:

  • Perforated Back-Up Tube: (1/8″ dia holes or ¼” dia hole)
  • Wire Mesh OverScreens: 12 – 200 mesh STOCK
  • SANIWEDGE Wedge Wire Element: Slot openings to 50 microns!
  • SKS OverScreen: Like wire mesh, except no wire intersections!
  • Filter Socks: 1000 – 25 microns

Complete assemblies, replacement parts, and Wire Mesh OverScreens – IN STOCK!

Side Inlet Strainer Assemblies

A Standard Strainer Assembly consists of: Side Inlet Filter Body, Top Cover, Perforated Back-Up Tube w/handle, Distributor Cap w/handle, Spring, Clamp and Buna N Clamp Gasket. For additional smaller options and spare parts scroll down.

View Catalog

Description

A Standard Strainer Assembly consists of: Side Inlet Filter Body, Top Cover, Perforated Back-Up Tube w/handle, Distributor Cap w/handle, Spring, Clamp and Buna N Clamp Gasket.

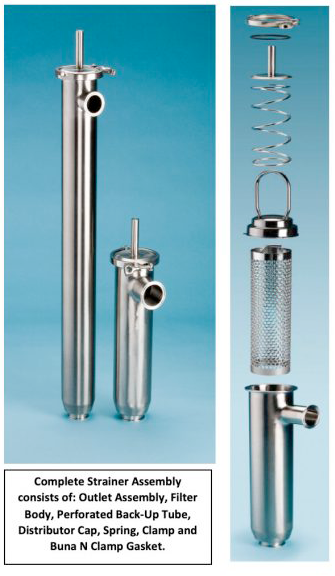

Complete Strainer Assembly consists of: Outlet Assembly, Filter Body, Perforated Back-Up Tube, Distributor Cap, Spring, Clamp and Buna N Clamp Gasket.
