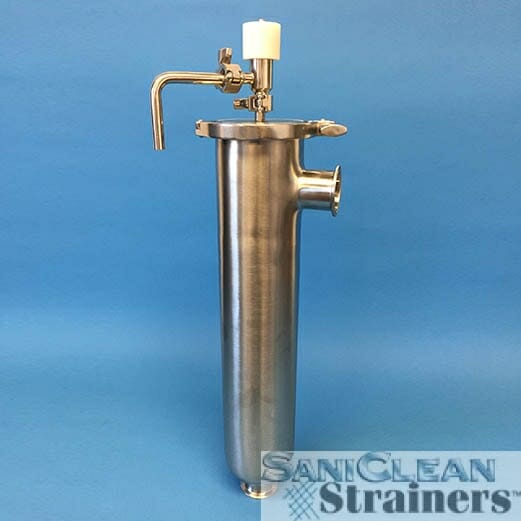

#450 Basket Strainer Assembly

3A Approved. All material 316L SS.
Available with many options –

  • Convenient Piping Configurations –
    • Style R – Side Inlet, Bottom Outlet
    • Style S – Side Inlet, Side Outlet, Bottom Drain (Ideal for a Duplex set-up)
  • Capacities: 0.4 s/f – 1.6 s/f Basket Areas
  • Line Sizes: 1.0”, 1.5”, 2.0”, 2.5”, and 3.0”
  • Connections: Clamped (standard), I-Line, Bevel Seat, or Butt Weld available

Strainer Basket options include:

  • Perforated Basket: ¼” dia hole ‘standard
  • Wire Mesh Liner Baskets: (1975 – 75 microns)
  • Wedge Wire Strainer Basket: available with slot openings down to 50 microns
  • Filter Bags: various materials (1000 – 25 microns)

View Catalog
